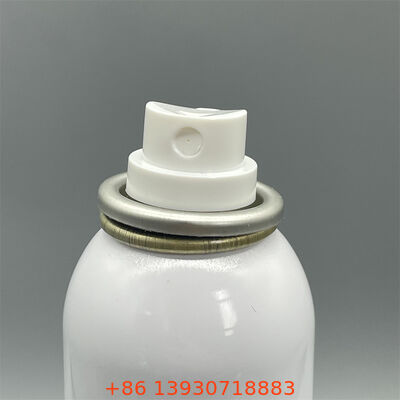

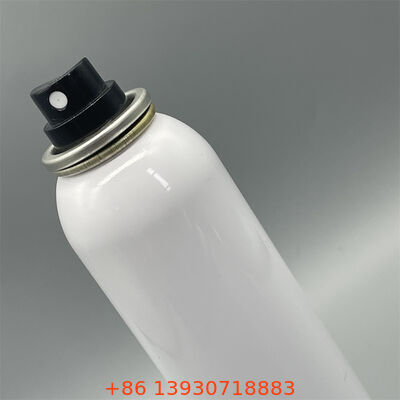

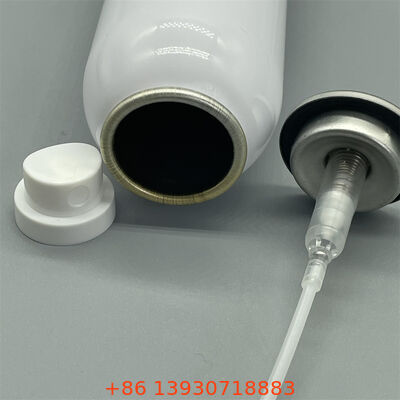

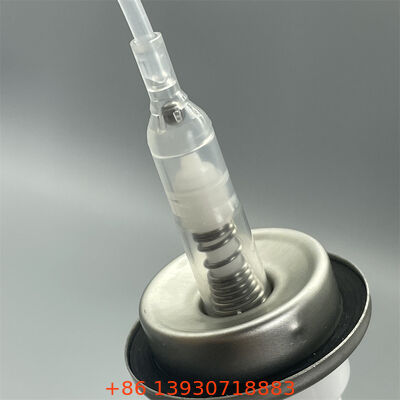

0.15cc Precision Aerosol Mist Pump for Fine and Uniform Spray Output
The 0.15cc precision mist pump aerosol head delivers consistent, ultra-fine spray for a wide range of liquid formulations. Ideal for perfumes, facial mists, toners, and personal care products, it ensures even distribution while minimizing product waste.
Engineered for compatibility with standard 1-inch aerosol systems, this pump integrates seamlessly with various packaging formats. Its optimized nozzle and actuator design provide smooth, low-effort operation for precise and controlled dispensing.
Manufactured using high-quality, corrosion-resistant materials, the pump offers excellent sealing performance to prevent leakage, contamination, and evaporation, maintaining product integrity throughout its lifecycle.
Key Features
- Ultra-Fine Mist Output - Ensures smooth, even spray coverage
- Reliable Sealing Performance - Protects against leaks and contamination
- Durable Construction - Corrosion-resistant materials for long-lasting use
- Wide Compatibility - Suitable for cosmetics, personal care, and liquid products
- User-Friendly Design - Easy, low-force actuation for comfortable use
- Customizable Components - Flexible configurations to meet packaging needs
Product Specifications
| Attribute |
Value |
| Product Name |
Mist Spray Pump |
| Standard Size |
1 inch (25.4mm ± 0.15mm) |
| Material |
Tinplate / Aluminum |
| Dip Tube Length |
Customizable to container height |
| Finish Options |
Plain / Clear Lacquer / Gold Lacquer |
| Inner Opening Diameter |
25.4 ± 0.07mm |
| Outer Opening Diameter |
31.2 ± 0.1mm |
| Inner Gasket Material |
Buna / Neoprene / Butyl |
| Dip Tube Material |
Polyethylene |
Technical Parameters
| Component |
Material |
Options / Specifications |
| Mounting Cup |
Tinplate |
With or without dimples |
| Mounting Cup |
Aluminum |
Gold lacquer / Microflex finish |
| Outer Gasket |
Buna |
-- |
| Inner Gasket |
Buna / Neoprene / Butyl |
-- |
| Stem |
Nylon |
1×0.46mm, 1×0.51mm, 2×0.51mm, 2×0.61mm, 4×0.61mm |
| Spring |
Stainless Steel |
-- |
| Housing |
Nylon |
Φ4.3mm (Spray Area: 14.52mm²) |
| VPH Spray Area |
-- |
6.7mm² |
| Steel Ball |
Stainless Steel |
Φ3.5mm |
Frequently Asked Questions
Is the pump easy to clean?
Yes, the simplified internal structure allows for easy cleaning and maintenance.
What is the service life of the pump?
It is designed for long-term use under normal conditions, depending on usage frequency and formulation compatibility.
Can it be customized for different containers?
Yes, certain components can be tailored to meet specific container requirements.
Will it affect the fragrance or formulation?
No, the materials are designed to remain neutral and preserve the original formulation quality.
